InIndustrial Automationareas,Safety doorIt is the first line of defense for the guards. But the traditional mechanical safety door switch, have you ever suffered the following troubles?

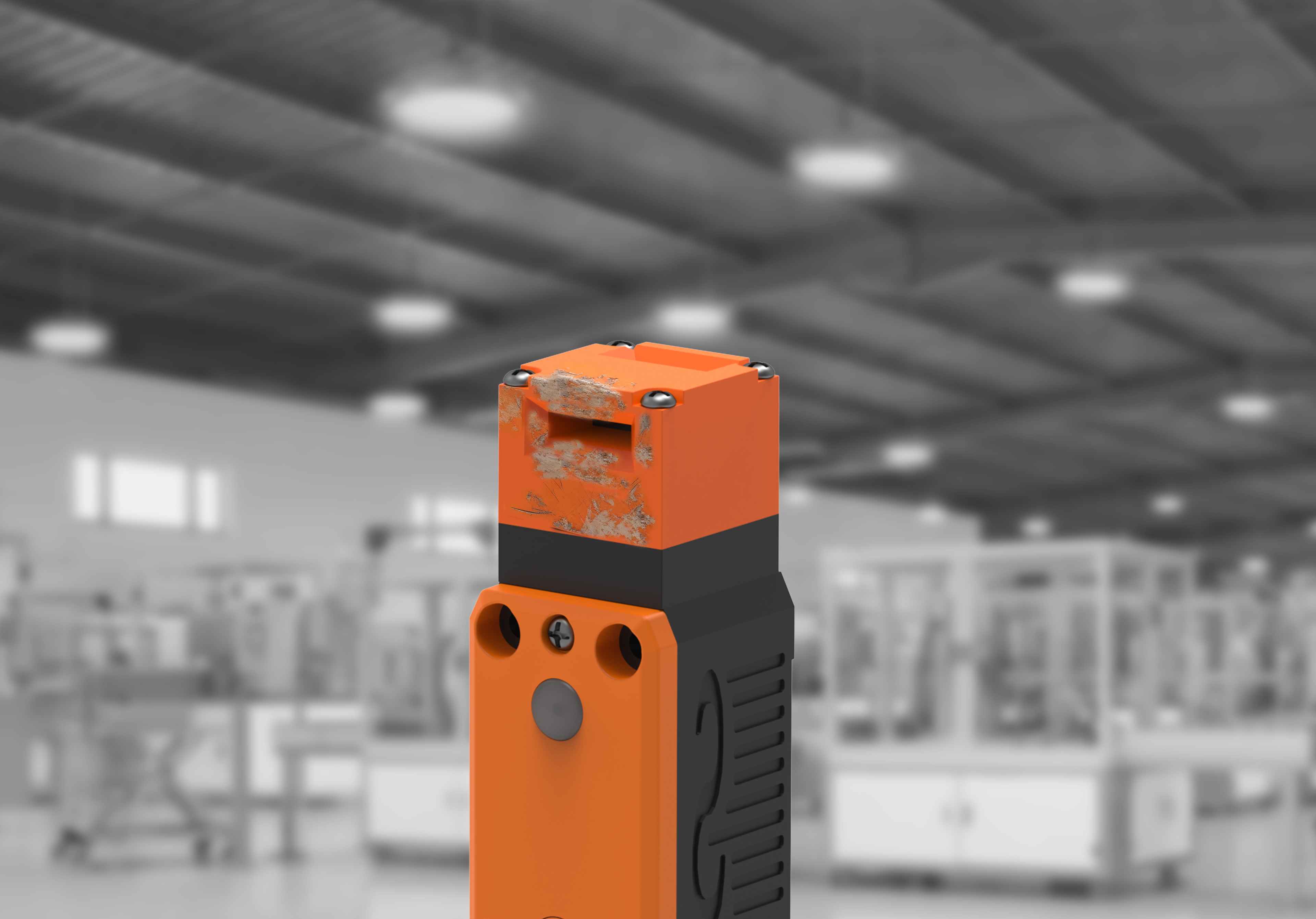

Mechanical wear
Limited life due to mechanical wear and frequent maintenance?
Installation misalignment
False alarm caused by misplaced installation, affecting production efficiency?
harsh environment
Bad environment, oil, dust intrusion, resulting in switch failure?
It's time to embrace change!
Non-contact safety door switch
With its highReliability,Long lifeand excellenceFlexibility，
It is becoming a smart factory.new standard.
Today,
We come to the depth of understandingHua Yifeng MS1 Seriesproduct and see how it redefines security.
01
Extreme Reliability of Magnetic Induction
The ultimate reliability of magnetic induction
Long life, high reliability, easy installation
Principle

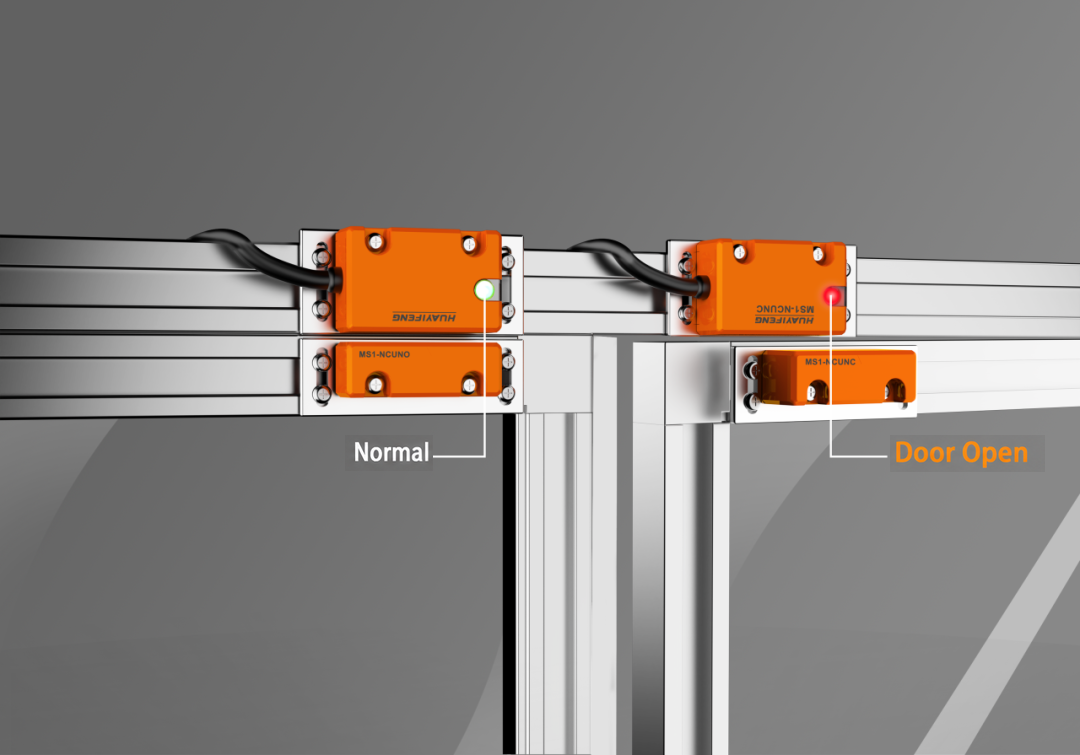

MS1 SeriesBypermanent magnet(Installed on the door) andSensor(installed in the door frame) between the magnetic flux changes are detected.
Advantage
No physical contact,Zero wear, the product life is directly full;IP67 levelProtection, oil, sewage and dust are all blocked out, and the industry is as stable as an old dog even if it is harsh. Installation also comes with "Buddha" buff, allowedLarge horizontal vertical misalignment, greatly reduce the difficulty of debugging, debugging time saved can drink two cups of coffee.
02
Intelligent Security through Wireless Encoding
Smart security for wireless coding
High security, strong anti-interference
Principle

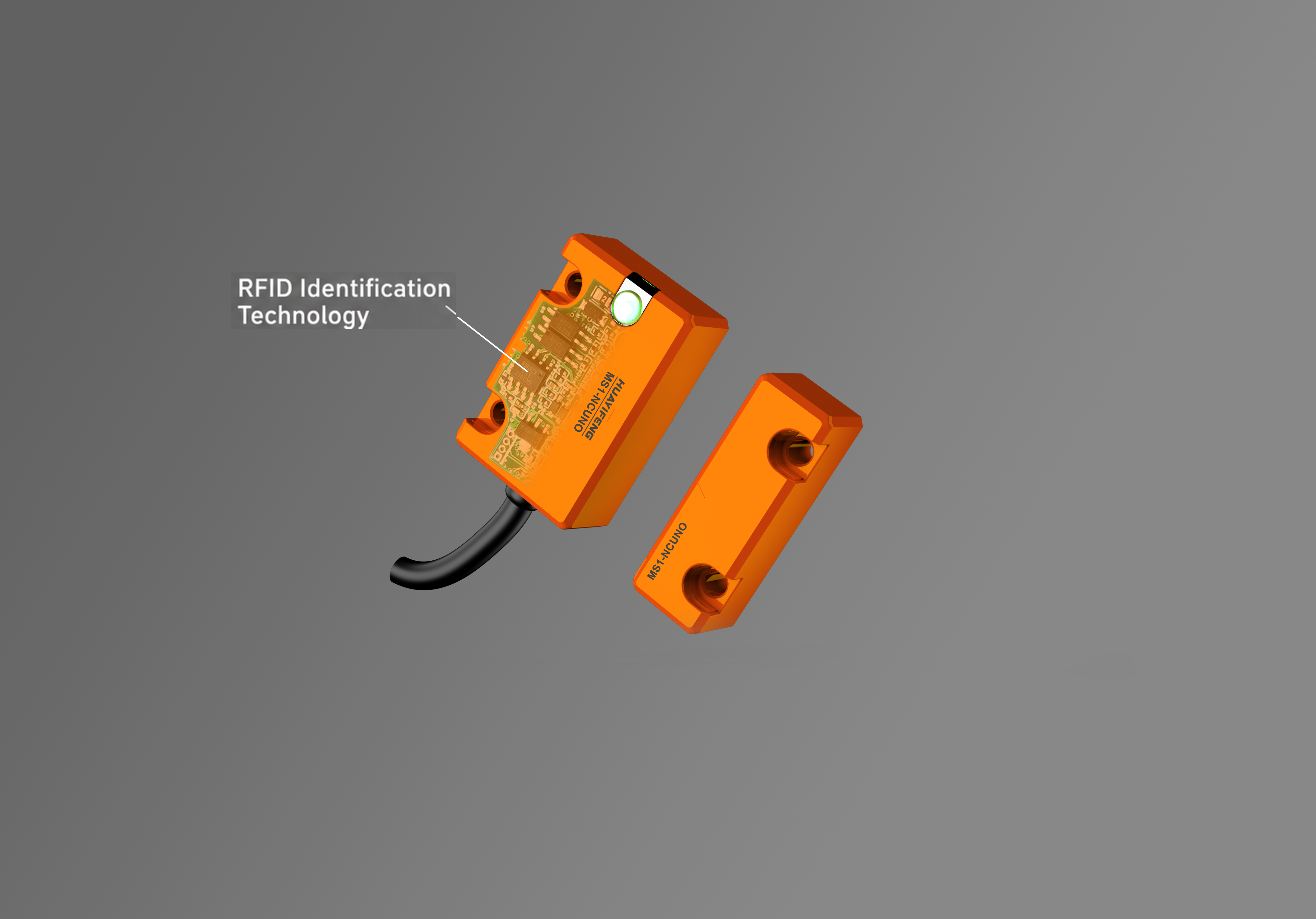

MS1 SeriesAlso adoptedRFID identification technology.
This technology has a unique ID code built into the actuator (key), and the sensor confirms the status of the door by reading and verifying the ID code.
Advantage
UniqueThe coding system can also effectively prevent malicious short-circuiting or tampering; even if multiple switches are side by side, the coding can be accurately identified without interfering with each other,Strong anti-interference; one sensor canCompatible with multiple actuatorsComplex scenes can alsoFlexibleConfiguration.
Note: At the same time, it is also equipped with universal coding products to choose from.
03
simple&standard
customization
Simple & Standard
Differentiated customization
simple type(basic type):
Suitable for basic safety protection of a single door body, functional focus, high cost performance, is the ideal choice for most standard applications.
Standard type(Cascade Functional):
The cascade function allows multiple switches to be connected in series with only one signal input to the safety controller.
Huge advantages of cascading functionality:
Significant cost savings:Multiple doors only need to occupy one input point of the safety controller, saving the number of expensive safety modules and corresponding wiring.
Simplified system architecture:The wiring is extremely simple, reducing the number of cables inside the equipment and reducing the complexity of design, installation and maintenance.
Improve scalability:For equipment renovation projects that require additional monitoring points, it is extremely easy to add safety doors.

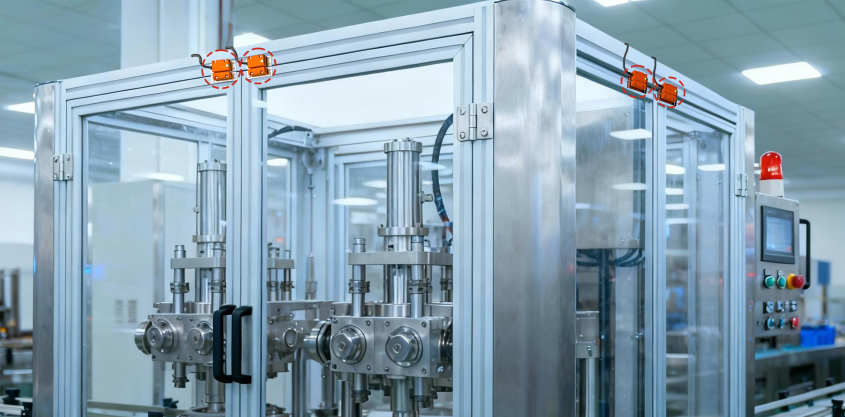

Hua Yifeng MS1 Non-contact Safety Door SwitchWith its coding security and installation convenience, it solves various pain points of application scenarios:
Zero wear, long life:Say goodbye to mechanical failure, equipment normal operation time is longer.
Maintenance-free, cost reduction:Significantly reduce downtime maintenance time and spare parts replacement costs.
Raising OEE:Reduce the production interruption caused by the false alarm of the safety door, and comprehensively improve the overall efficiency of the equipment.
Design more freely:No precise mechanical alignment is required, which provides greater flexibility for the design of the equipment structure.

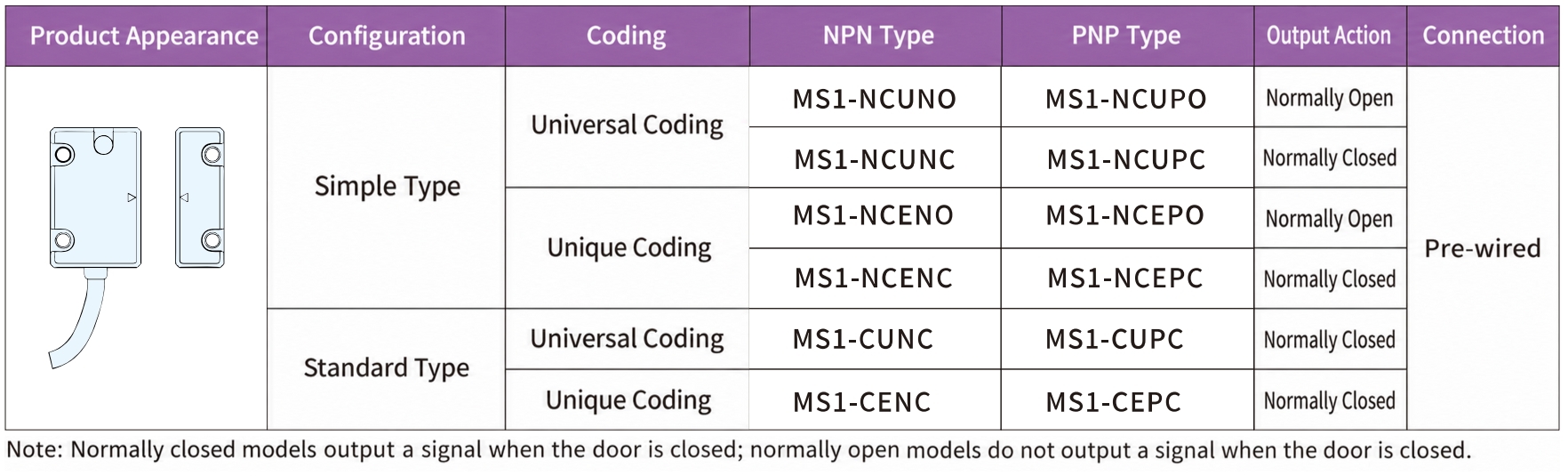

Product model table
