In the field of industrial automation and precision manufacturing, contact displacement sensor is a key component to ensure the reliability of process such as size detection, position control and flatness evaluation.

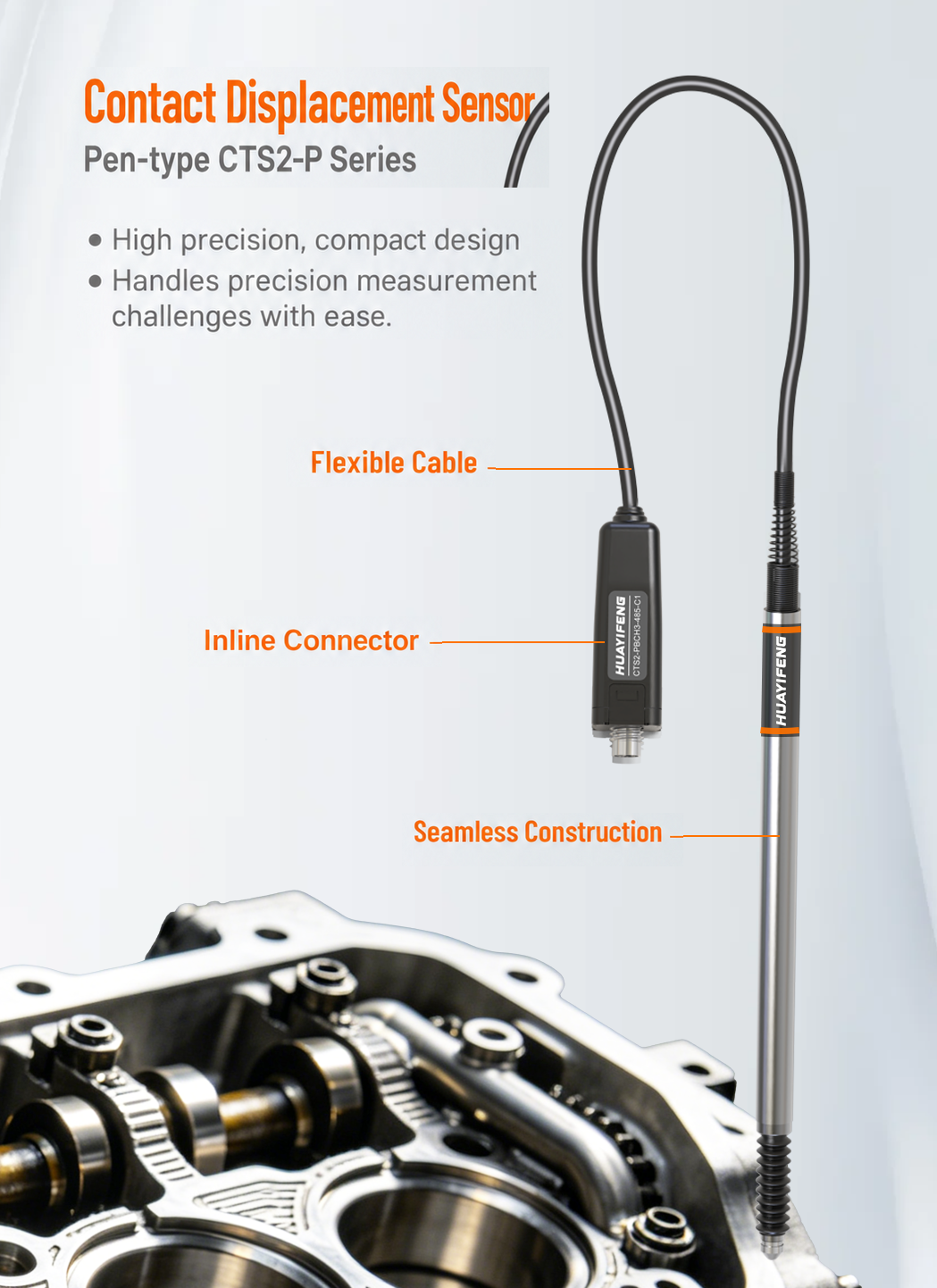

Hua Yifeng's newCTS2-P series pen-type contact displacement sensor, with high precision, high stability, flexible integration as the core advantages,For domestic users to bring better domestic alternative options.

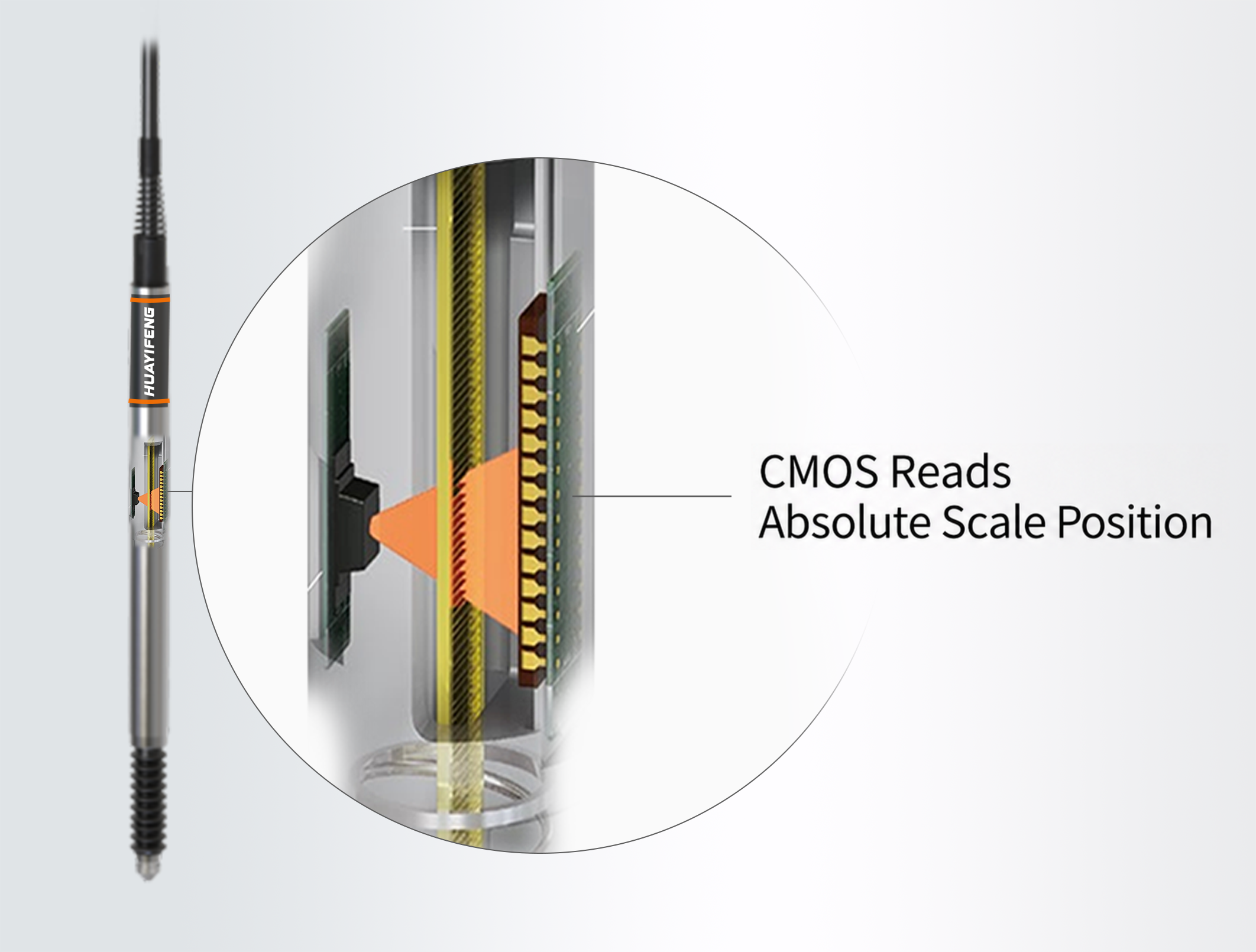

01 cMOS grating optical absolute value principle
The CTS2-P series uses advanced CMOS grating measurement and optical absolute value principles to realize non-contact grating encoding and high-resolution output: whether it is thickness, diameter, offset, flatness, or motor shaft eccentricity measurement, it can provide stable and reliable data.
02Rebound pen type structure, adapt to static and dynamic measurement
The CTS2-P adopts rebound design, the shape is pen type, the structure is compact, and it is easy to install and use in a narrow space. Supports static measurements (such as fixed-point thickness detection) and dynamic measurements (such as online offset tracking).

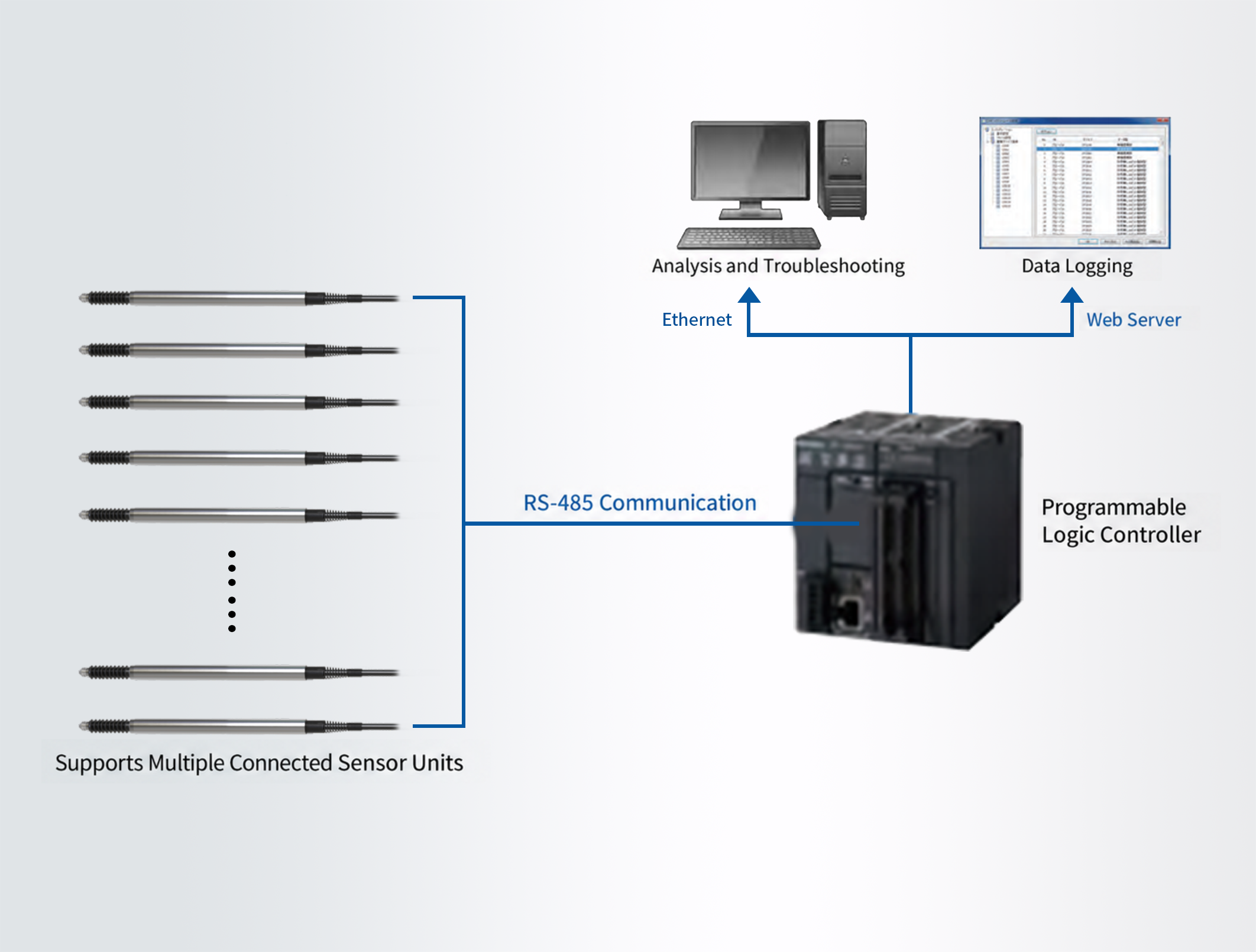

03RS485 Modbus RTU, easy access to control system
The CTS2-P series comes standard with RS485 communication interface and Modbus RTU protocol. It can be directly connected with PLC, touch screen and data acquisition module to realize remote monitoring and data recording. No complex drive or dedicated controller, simple wiring, fast debugging, significantly reduce system integration costs.

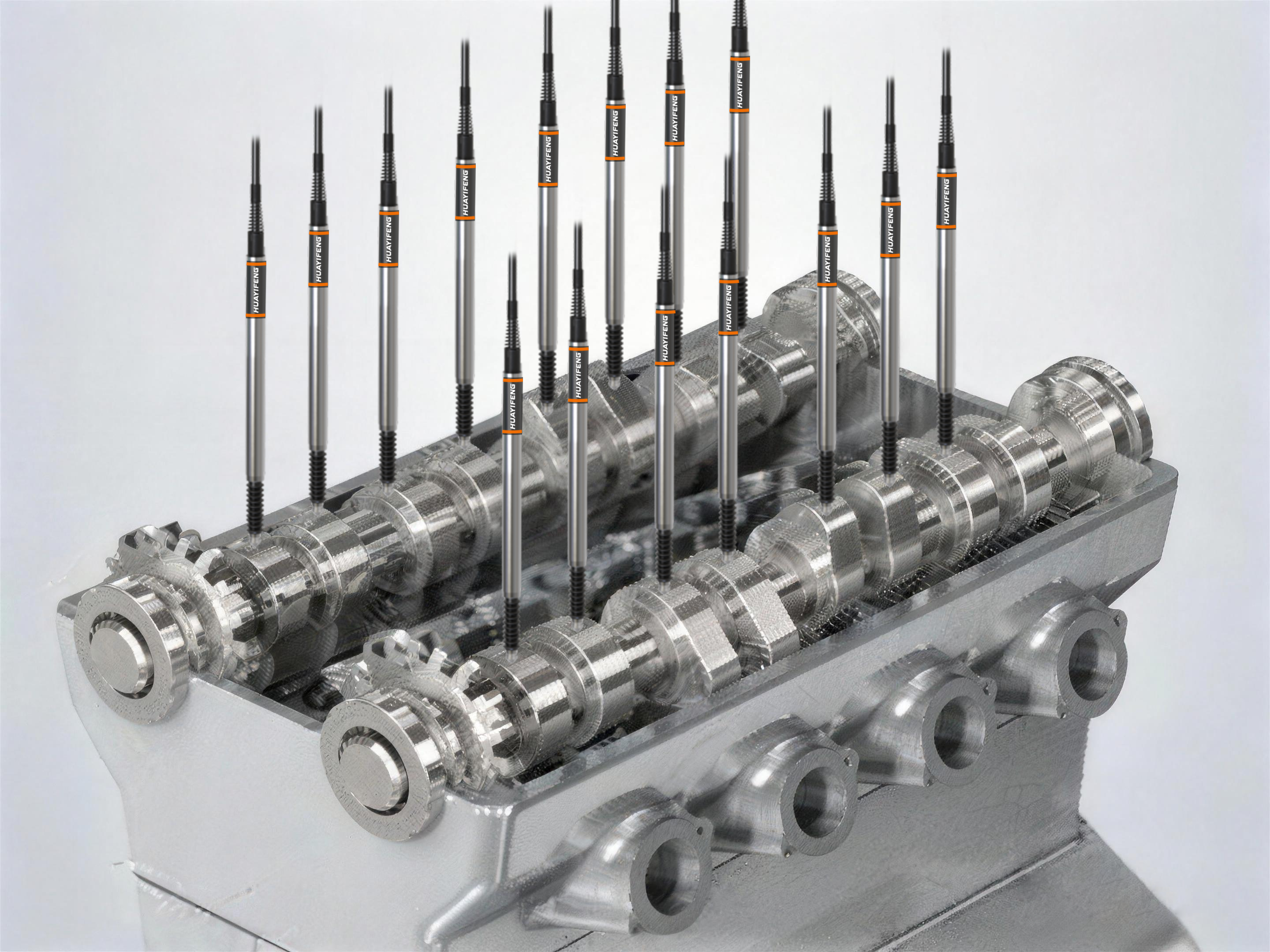

CTS2-P series pen type high precision contact displacement sensor, for intelligent manufacturing power,:0.1μmUltra-high resolution,≤ 1.4μmHigh precision,RS485 Modbus RTUIndustrial-grade communication, compact pen-type structure and low measuring force, becomeEccentricity, thickness, diameter, offset, flatness, etc. of the motor shaftIdeal for measuring scenes.
Application Case
electronic manufacturing industry

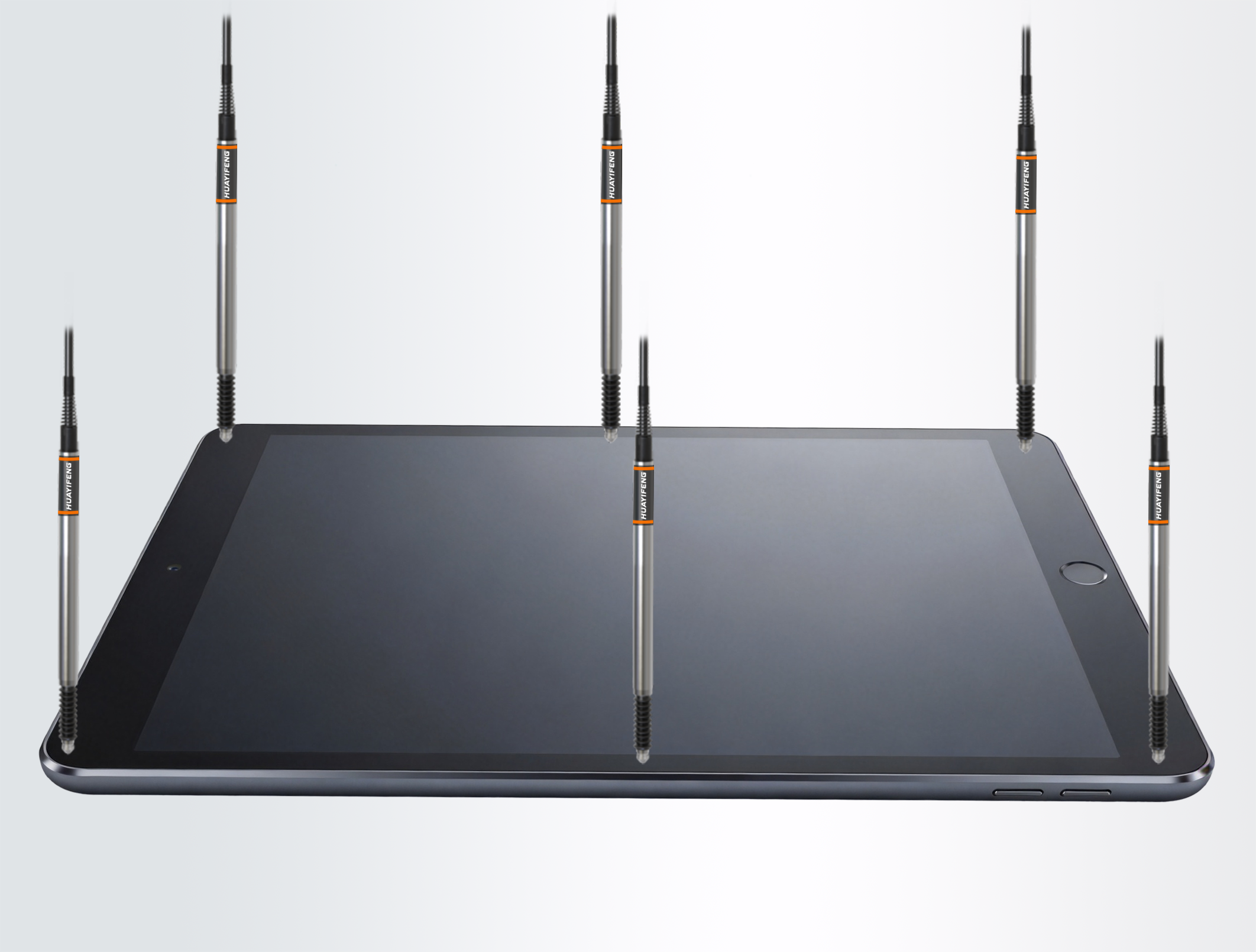

Flatness Measurement of Intelligent Tablet
Automotive industry
Brake disc flatness measurement
Precision manufacturing industry
Dimensional measurement of metal workpieces
Manufacturing industry

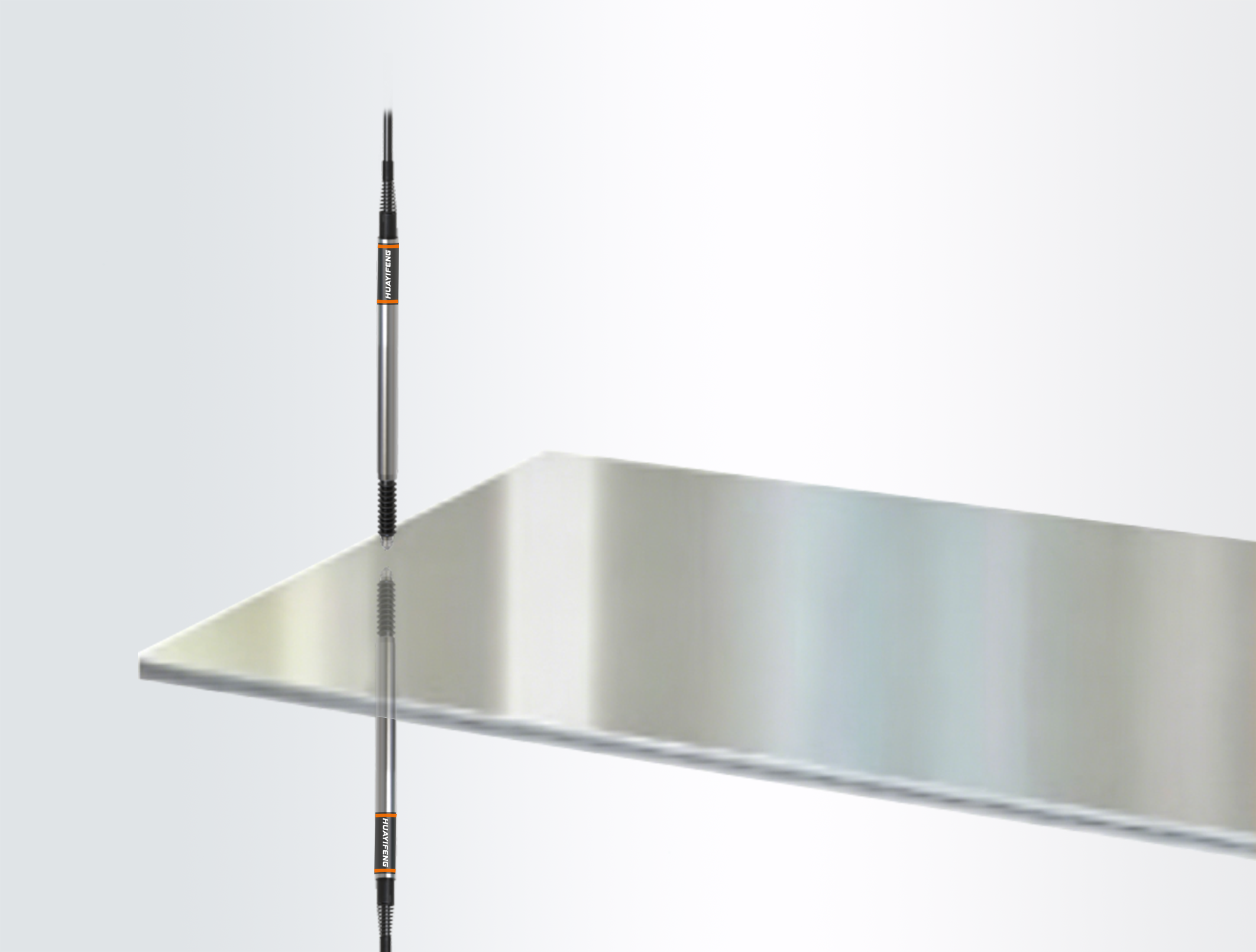

Steel plate thickness measurement
machining industry

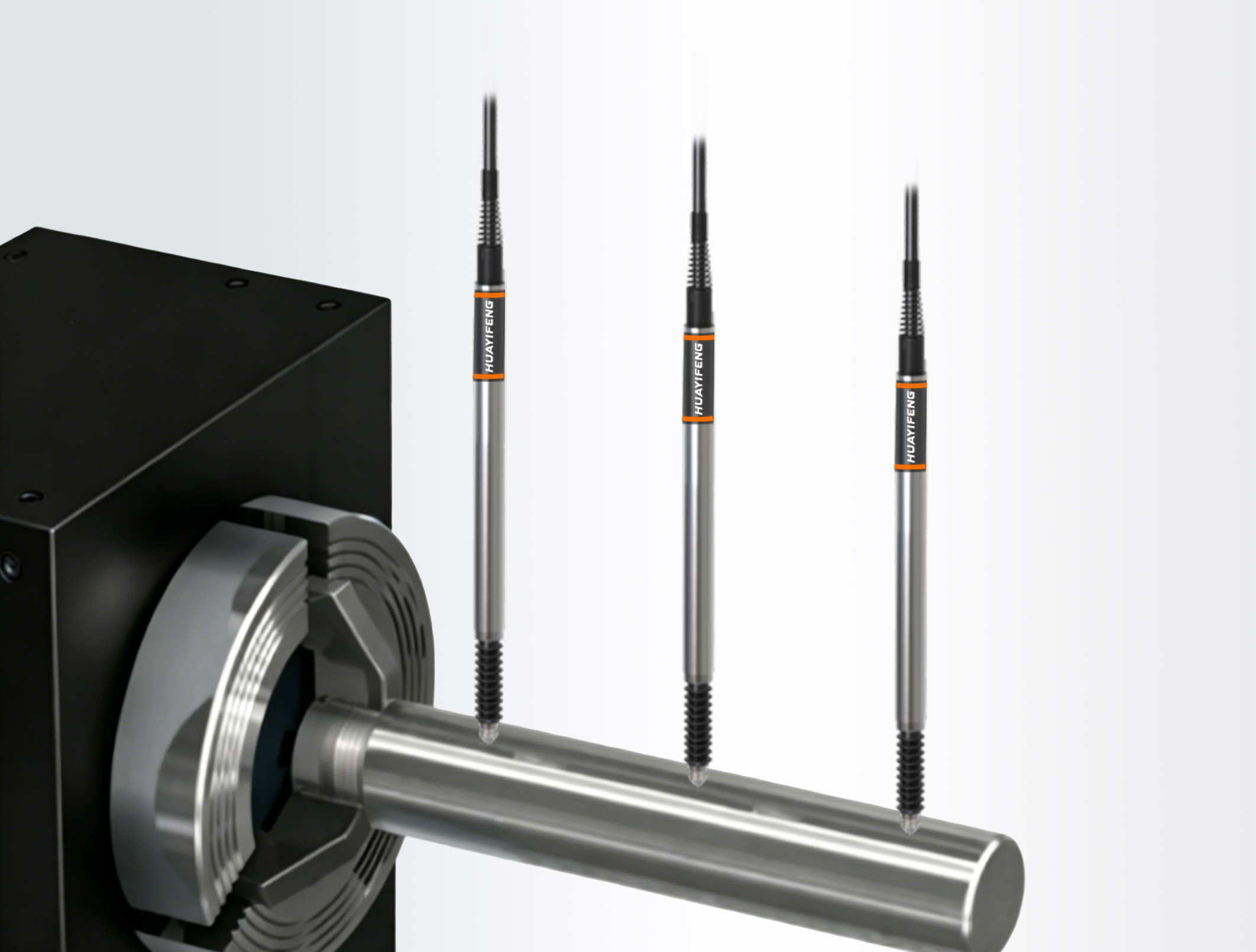

Measurement of runout deflection of shaft components
Automotive industry

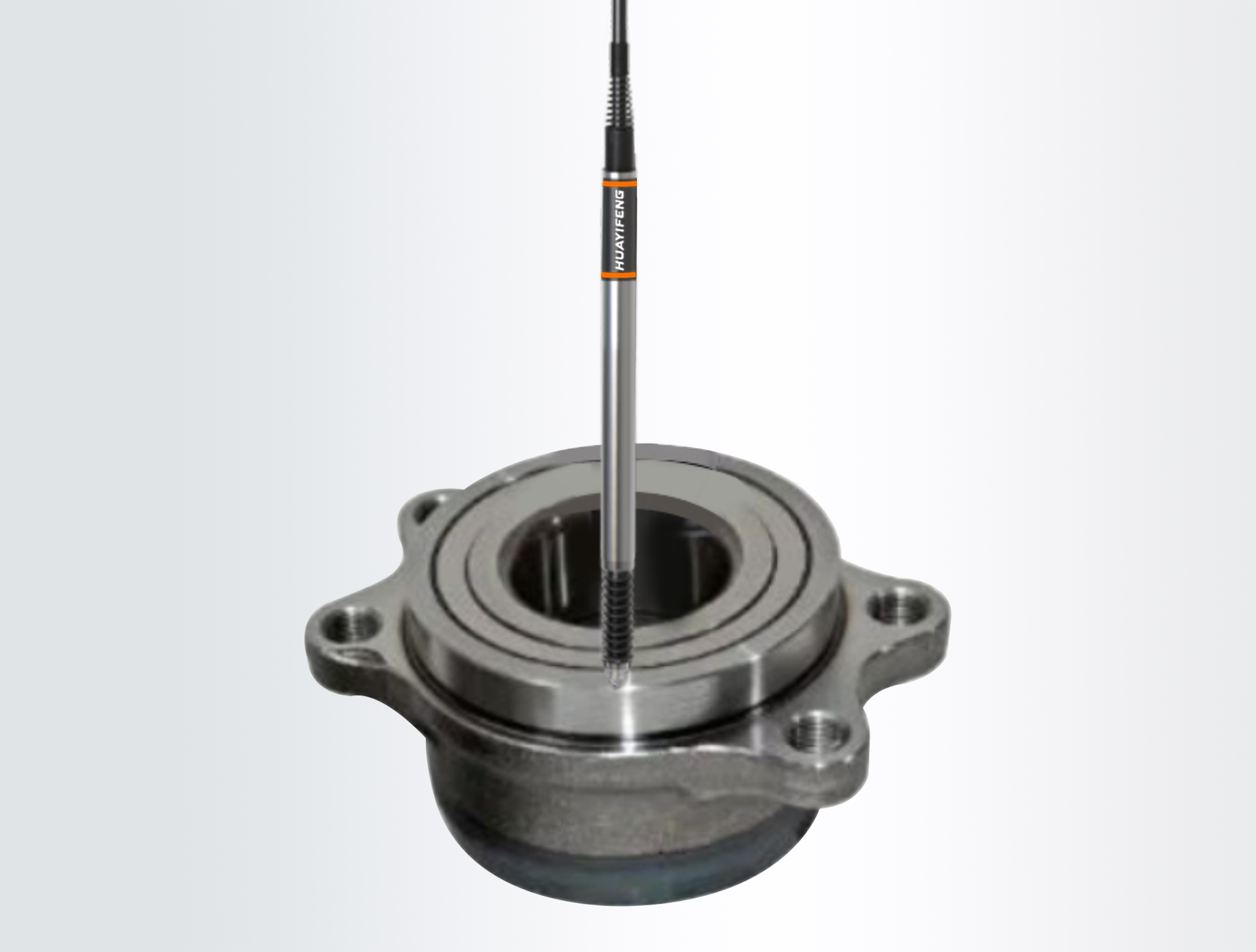

Dimensional measurement of automobile parts

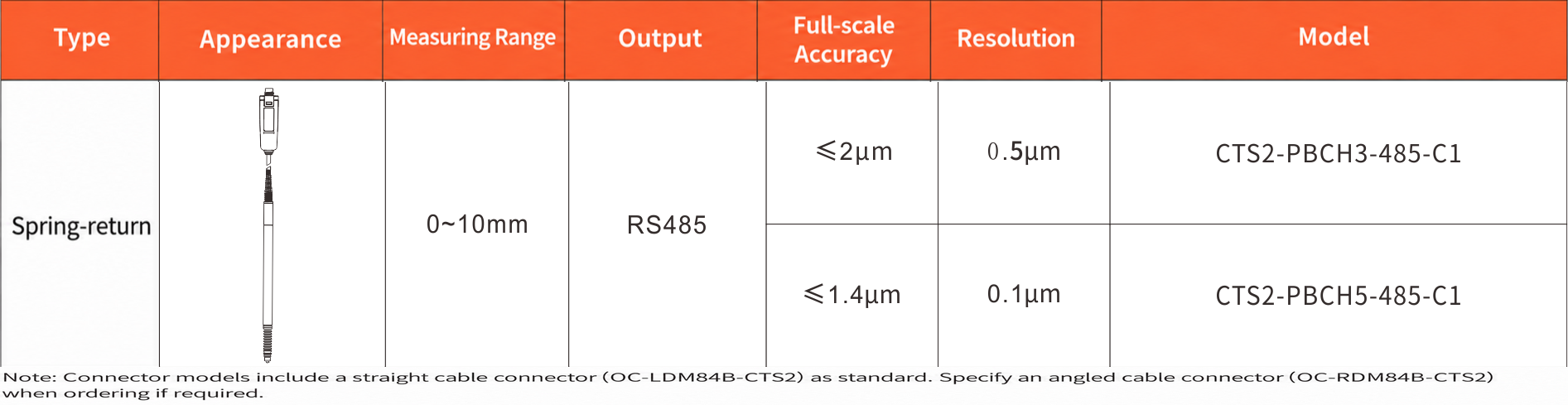

Selection Guide
