In the field of industrial automation, the selection of photoelectric sensors often determines the stability and service life of the entire detection system. Hua Yifeng's newLMS series metal photoelectric sensor,With its excellent performance, sturdy structure and very competitive price, it brings more ideal choices for industrial inspection.
01
LMS series adopts SUS316L stainless steel shell, with IP65 protection grade, impact resistance, corrosion resistance, suitable for wet, dust, oil and other complex industrial environment. Whether it is food processing, automobile manufacturing or semiconductor production lines, it can operate stably.
02
LMS series provides two detection modes: diffuse reflection type and opposite reflection type, among which diffuse reflection type provides two appearance structures to meet different mechanical space constraints.
Two appearance optional
- Front detection flat type:The sensor is thin and can be installed on the wall compactly, which is suitable for scenes where the space is narrow and the sensor needs to be flush with the inner wall of the device.
- Side detection type (same as the opposite type):The light emitting surface is located on the side, suitable for lateral installation, detection direction and installation surface perpendicular to the occasion, flexible to adapt to different mechanical structures.
03
Diffuse reflection type with background suppression, complex working conditions as stable as Taishan

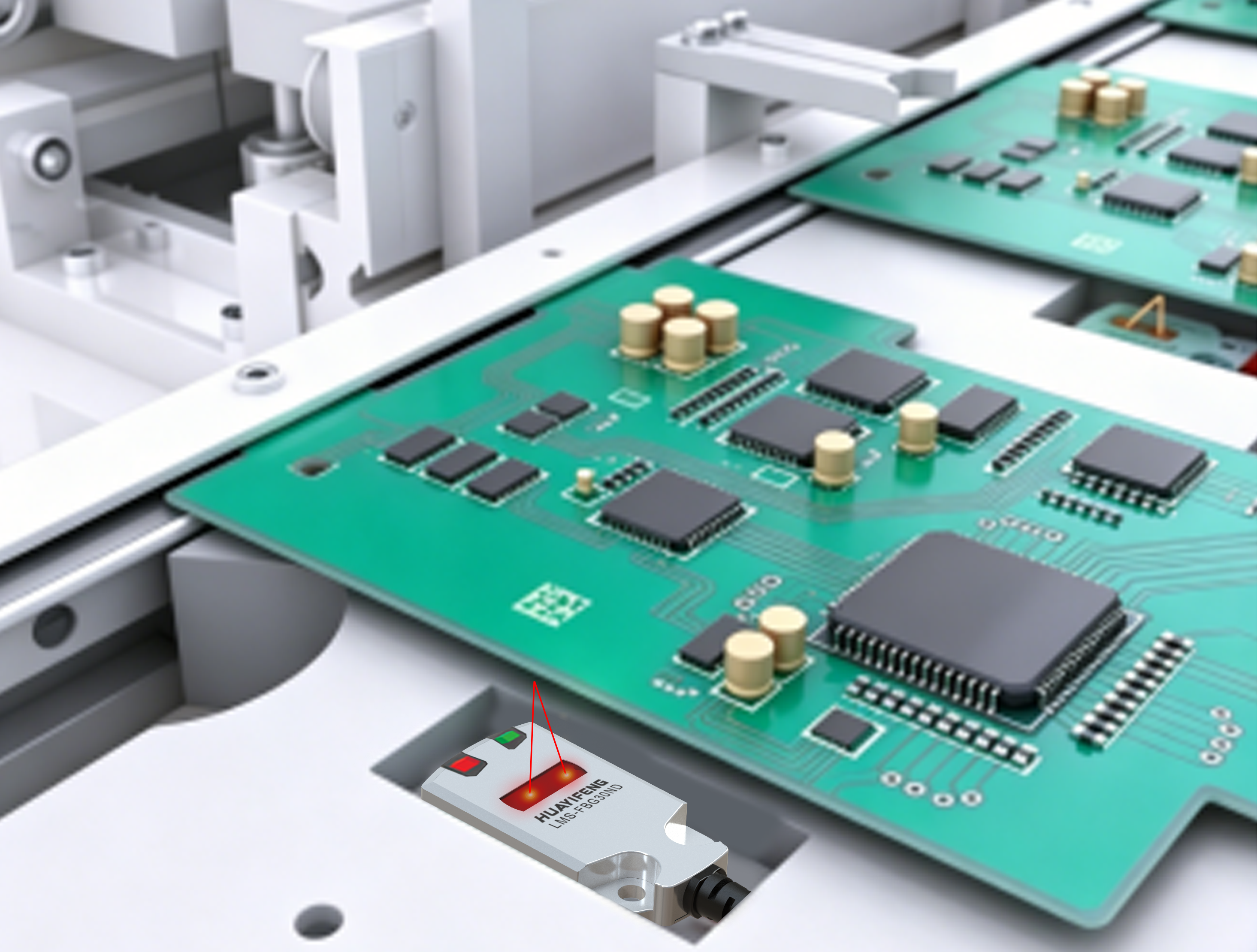

LMS series diffuse reflection sensor has background suppression (BGS) function, which can effectively shield the interference of background objects (such as conveyor belt, fixture, table, etc.) and only detect the target workpiece within a set distance.
-Precise distance control:Even if the background object is bright or reflective, it will not cause false triggering.
04

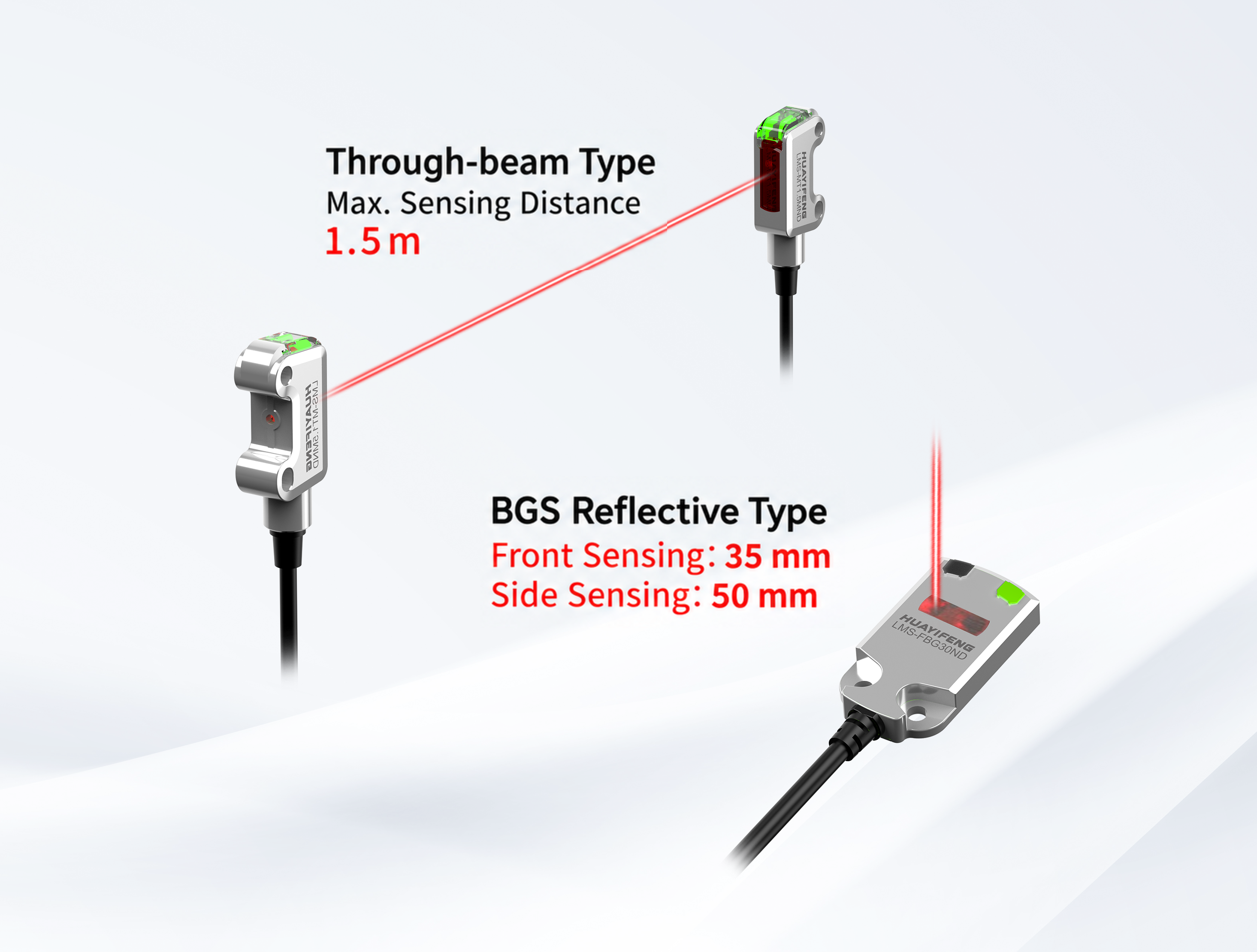

LMS series bothShort distance precision and long distance reliable,To meet the diverse testing needs:

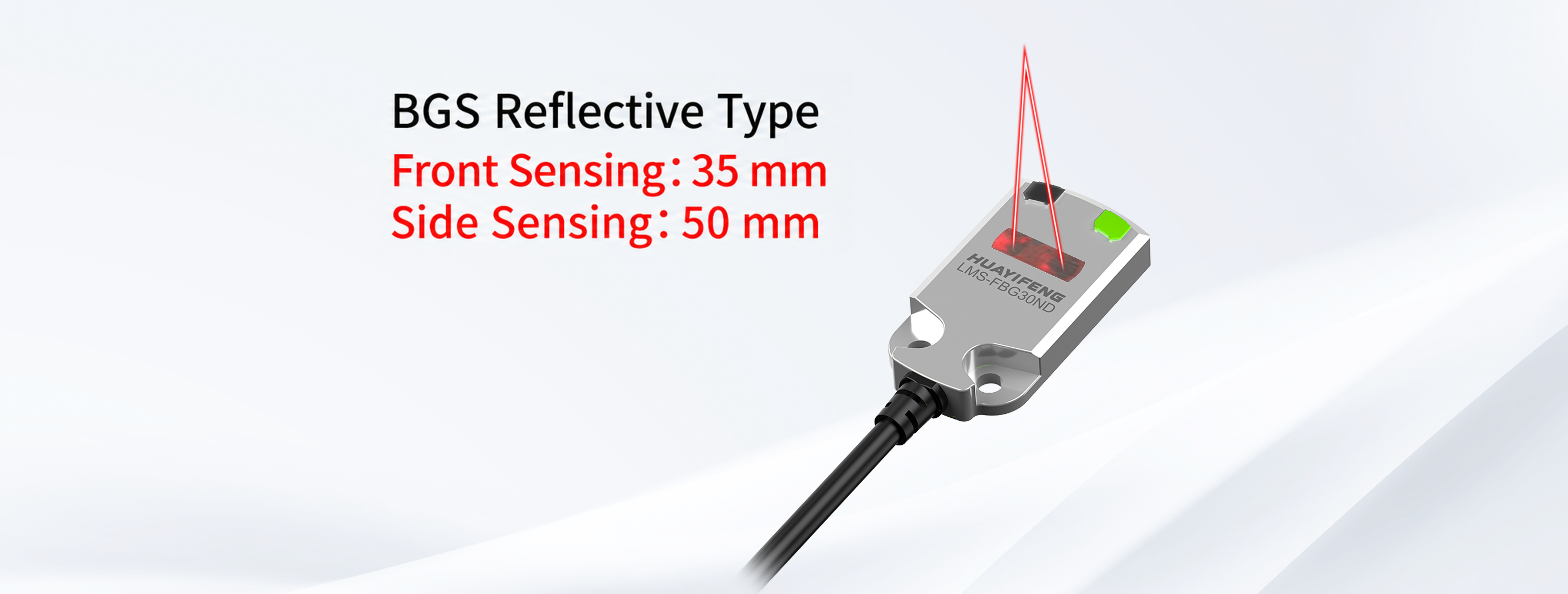

-diffuse reflection type:ProvideFront detection type(Detection distance 35mm) withSide detection type(Detection distance 50mm) Two specifications. The compact design is suitable for installation in narrow spaces, the power-assisted equipment is miniaturized, the spot size is only Φ4mm, and the small spot can achieve precise positioning, effectively avoiding interference from surrounding objects.
-Shoot type:Detection distanceUp to 1500mm, suitable for long-distance passing detection, object positioning and other scenes, the minimum spot size can reach Φ3.5mm (when the distance is 500mm), and the small spot is still maintained at long distance to ensure long-distance detection accuracy.
05
Typical application scenarios

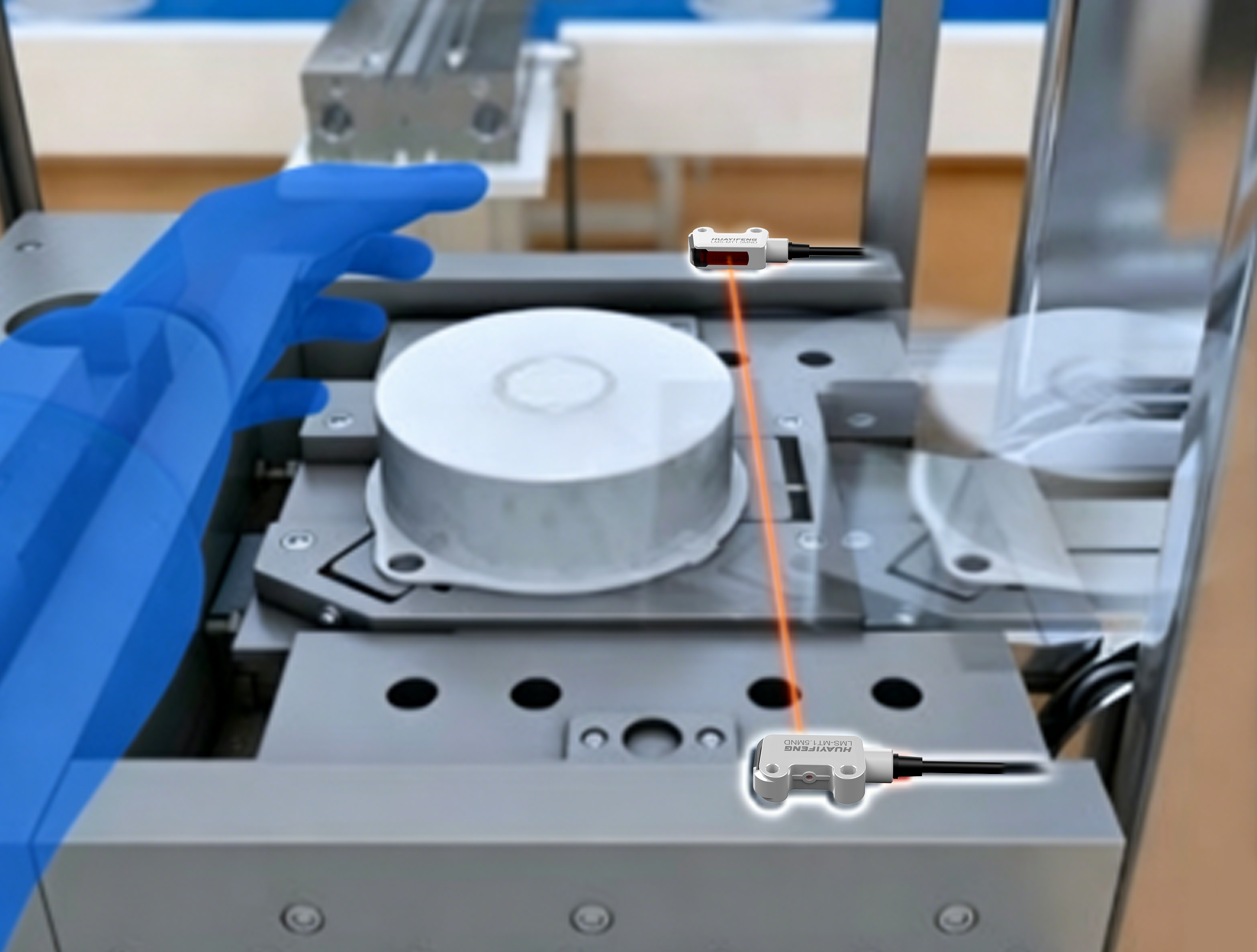

Whether metal processing parts are inspected or not

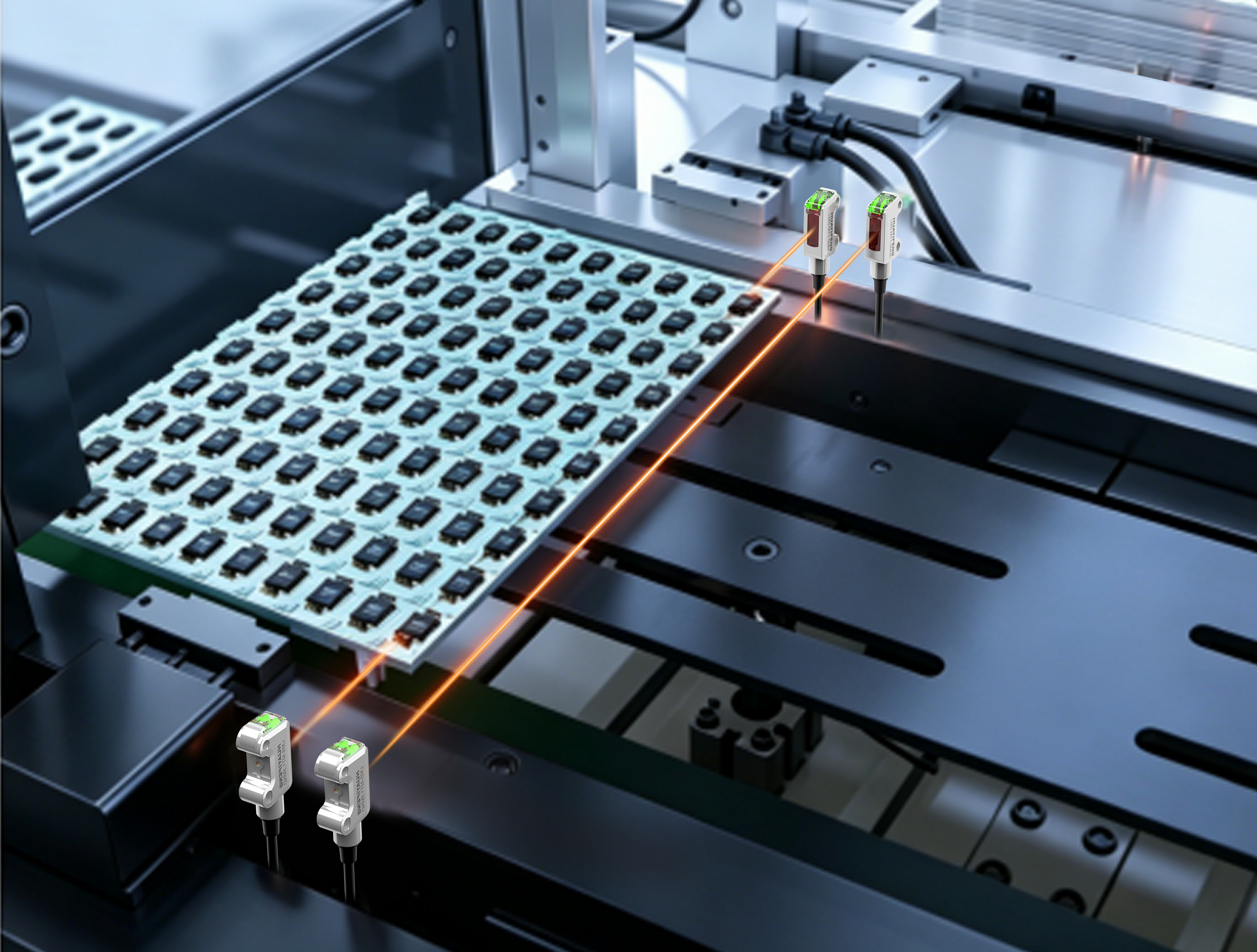

ConfirmThe presence or absence of IC chipsDetection
The presence or absence of photovoltaic silicon wafer detection
The bottles on the multi-row conveyor belt pass the detection

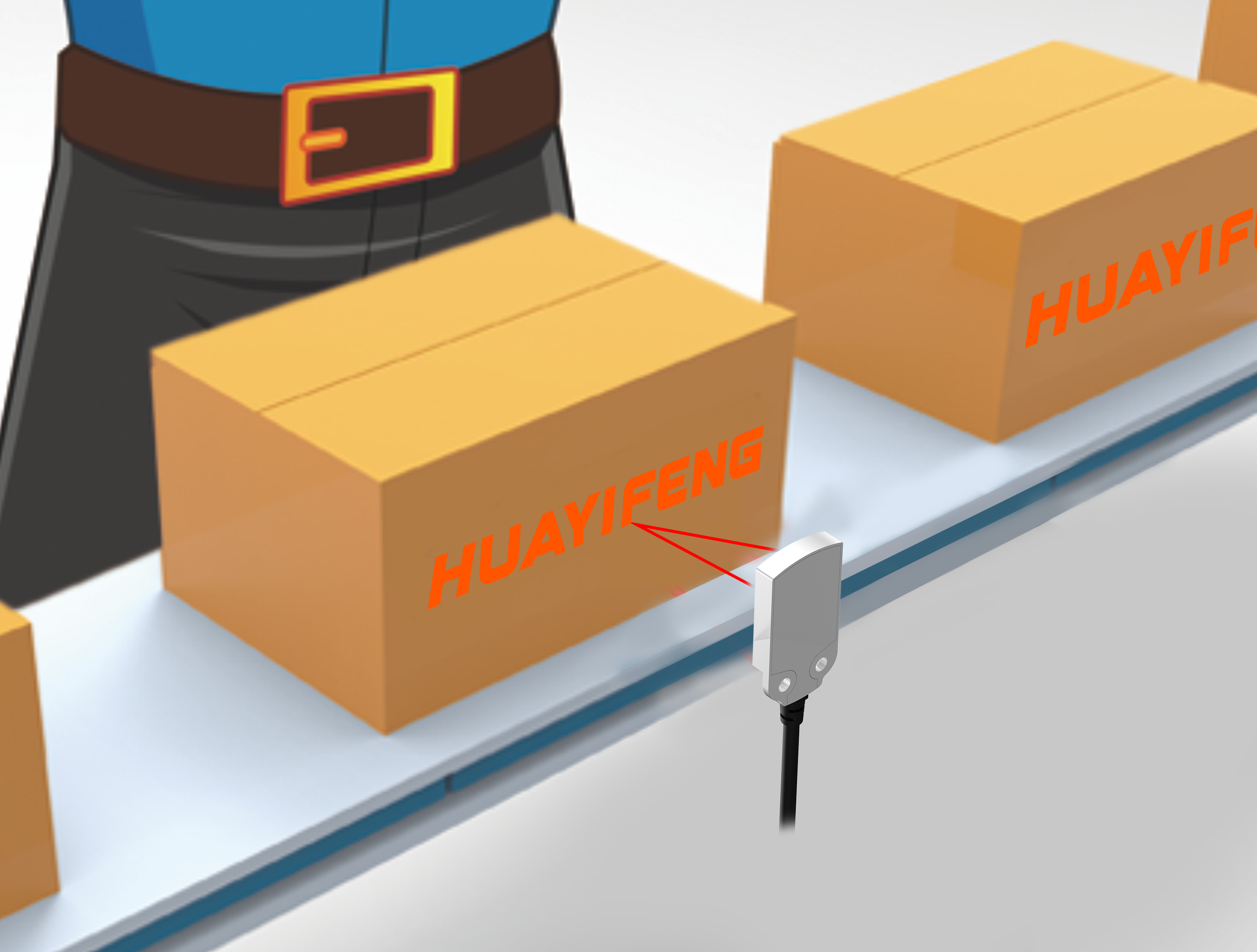

Material box transmission detection
LMS series metal photoelectric sensor,No.Only in the performance of the international first-line brand, but also in the background suppression, anti-interference, cost and service to achieve a real localization advantage.Huayi Feng will continue to provide cost-effective and reliable detection solutions for intelligent manufacturing.
